Coin Slides

Here you will find our range of coin/token acceptors which will suit your need for every possible situation.

Related Articles on Coin Mechanism's

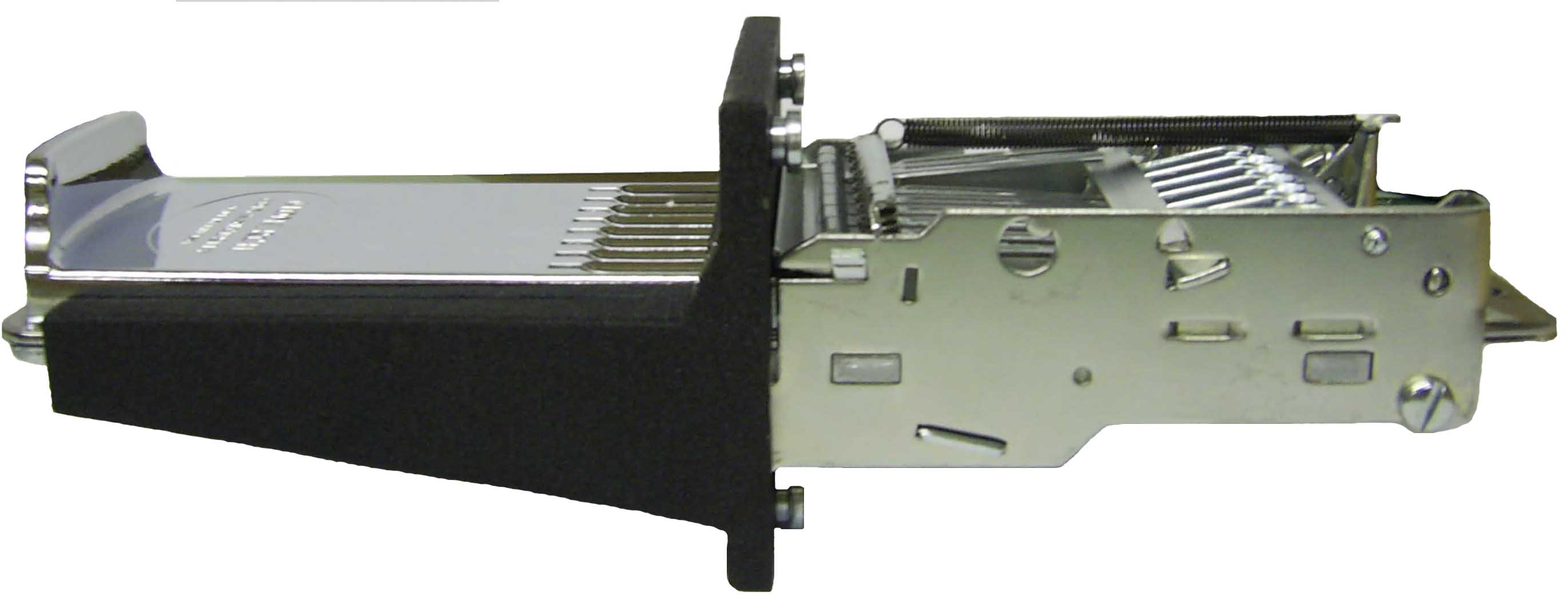

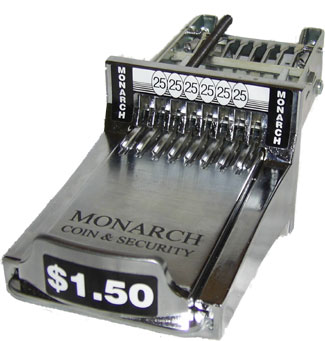

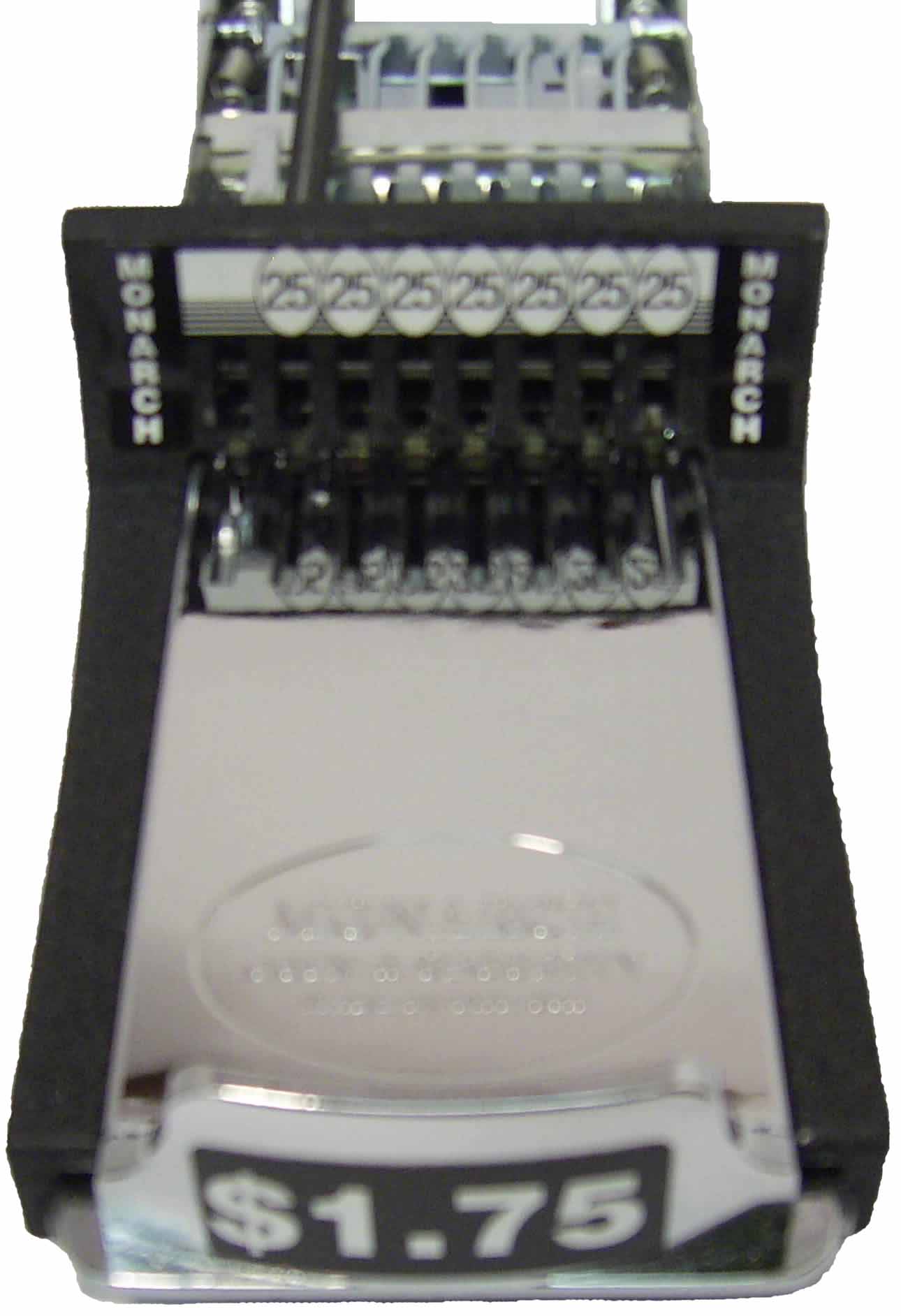

Vertical Eight Coin Mechanism

•  Stronger, Heavier Housing
•  Stronger, Heavier Slide
•  Smoother Operation
•  New, Cleaner Lines


Price Change Information: No Dis-assembly Required for Price Changes!

AVAILABLE FOR CURRENCY OF MOST NATIONS

• Chrome Or Durable Black Powder Coat Finish
•  Anti-Cheat Fingers & Sensitive Gauging
•  No Disassembly For Price Changes
•  25¢ to $2.00 - Field Adjustable
•  Steel and Die Cast Construction
• Available For Most Tokens


The powder coating process starts with a finely powdered blend of epoxy and polyester particles which are sprayed on to the metal part while it is hung from a statically charged line.

The part passes into a curing oven with a heat in excess of 400°, where the particles melt and fuse to the base metal, leaving a tough resilient and flexible finish that will surpass enamel or plating in durability. Resistant to chemicals and salt air, the product bypasses the pollution problems of chrome plating process and leaves a superior finish, at truly "Green" product.

Vertical Eight Token/Quarter Combo

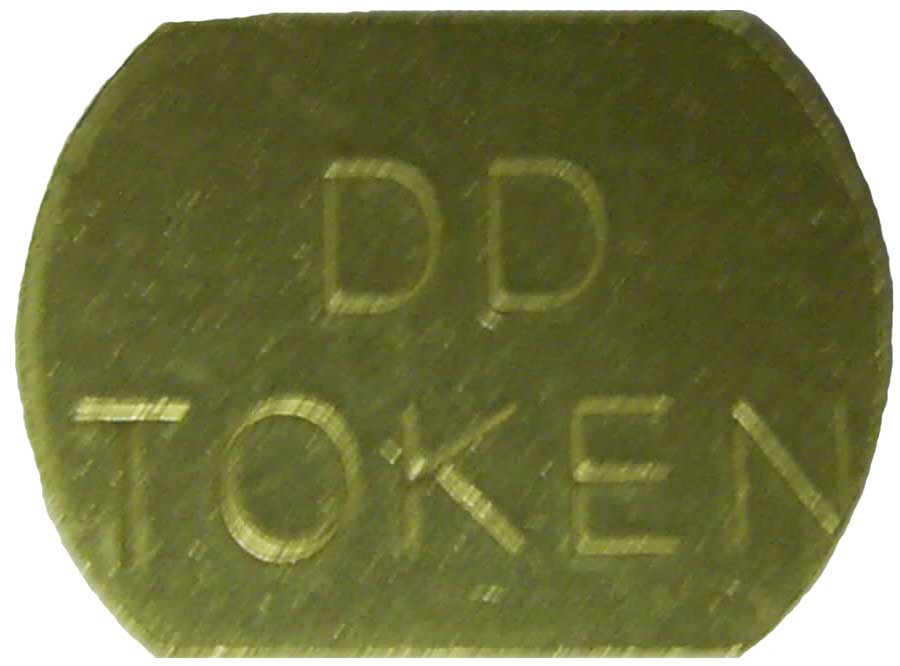

This specialized mechanism accepts up to $1.75 in quarters, or the price setting may be over-ridden by ONE Double D or ONE special brass token, according to the model you chose. All changes are internal to the chutes, so it will fit where any other Vertical Coin Chute would be used.

The unit is useful for wash & fold operations, to minimize the coins the attendants need to handle, and provide a tool for accountability. It is useful for promotional or discount programs, and for the establishment of a refund policy.
The special tokens are min

ted from thin gauge materials. They are the same diameter as conventional .880 tokens but are exceptionally thin. This minimizes any possibility to defraud with arcade tokens or other coins. Available in brass only.

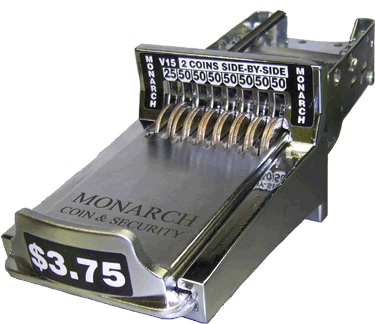

Vertical Fifteen Coin Mechanism

ACCEPTS UP TO $3.75 IN ONE PUSH!

•  Avoids Problems of Double Push
•  Replaces Any Vertical Eight
•  Allows 25¢ Price Increases
•  No Accumulators Required

•  Ideal for Larger Machines

Price Change Information: No Dis-assembly Required for Price Changes!

V15-L02 (BLACK)

IDEAL FOR: UNIMAC, WASCOMAT, OLDER SPEED QUEEN, IPSO/LAUNDRACENTER Or other large machines the generally take a higher vend price.

A speciality chute designed for machines which need to get over the $2.00 limit imposed by conventional Vertical Eight Coin Mechanisms. It fits where any other coin chute would, and avoids the necessity of double stroking the machine. The extra capacity is gained by re-working seven of the slots to accept TWO Quarters Side-By-Side.

Decals on the Chute reflect the need for two quarters in each slot, and an additional 4" x 6" decal is included with each chute to guide your customers in their use.

Check out our Security Tokens for laundry and vending applications.
>> Maintenance and Tune-up Notes for the Model

**PART NUMBER WILL VARY DEPENDING ON TOKEN/COIN**

*This unit is often used in the golf industry on range machines*

AVAILABE IN TRADITIONAL CHROME FINISH OR BLACK POWDER COAT

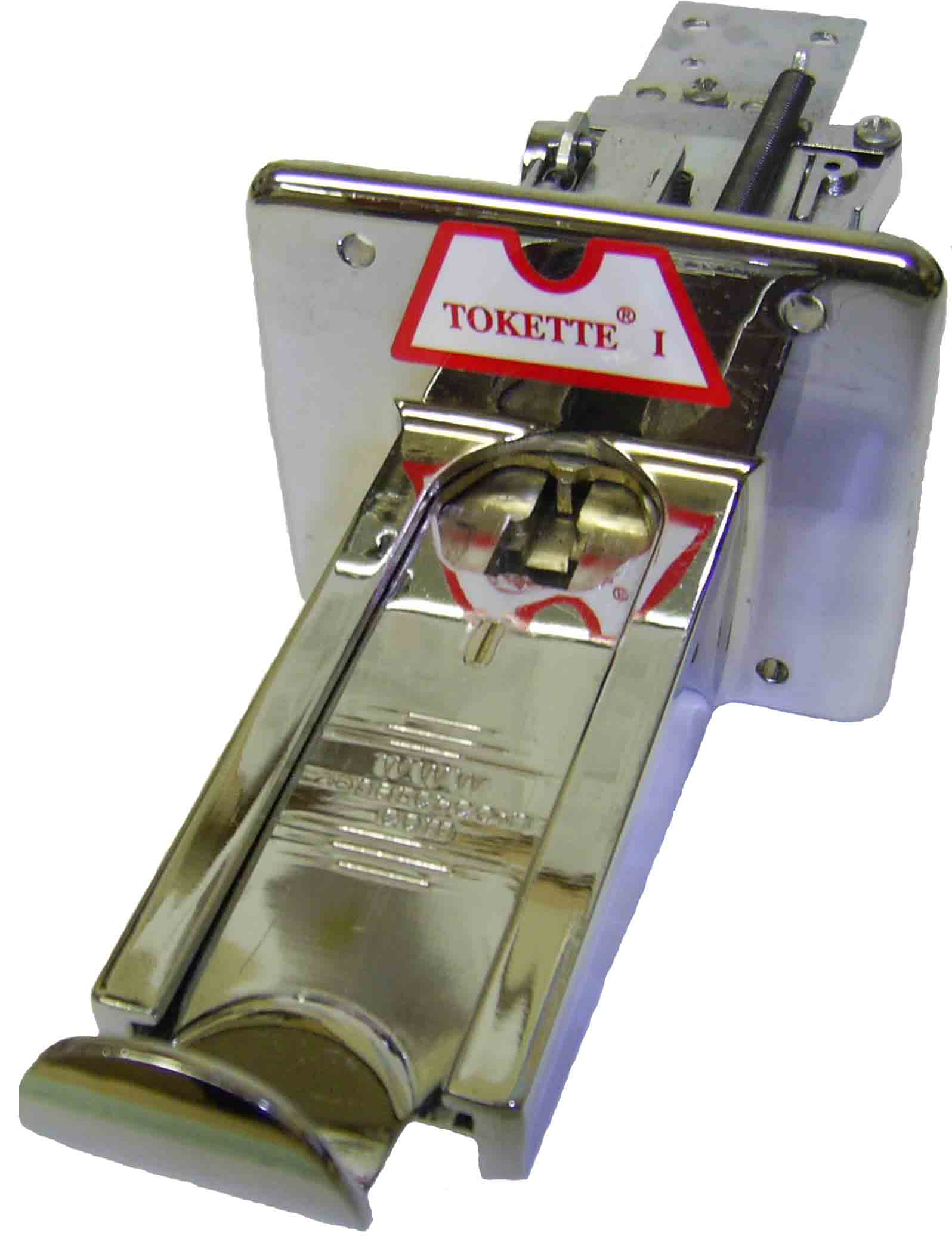

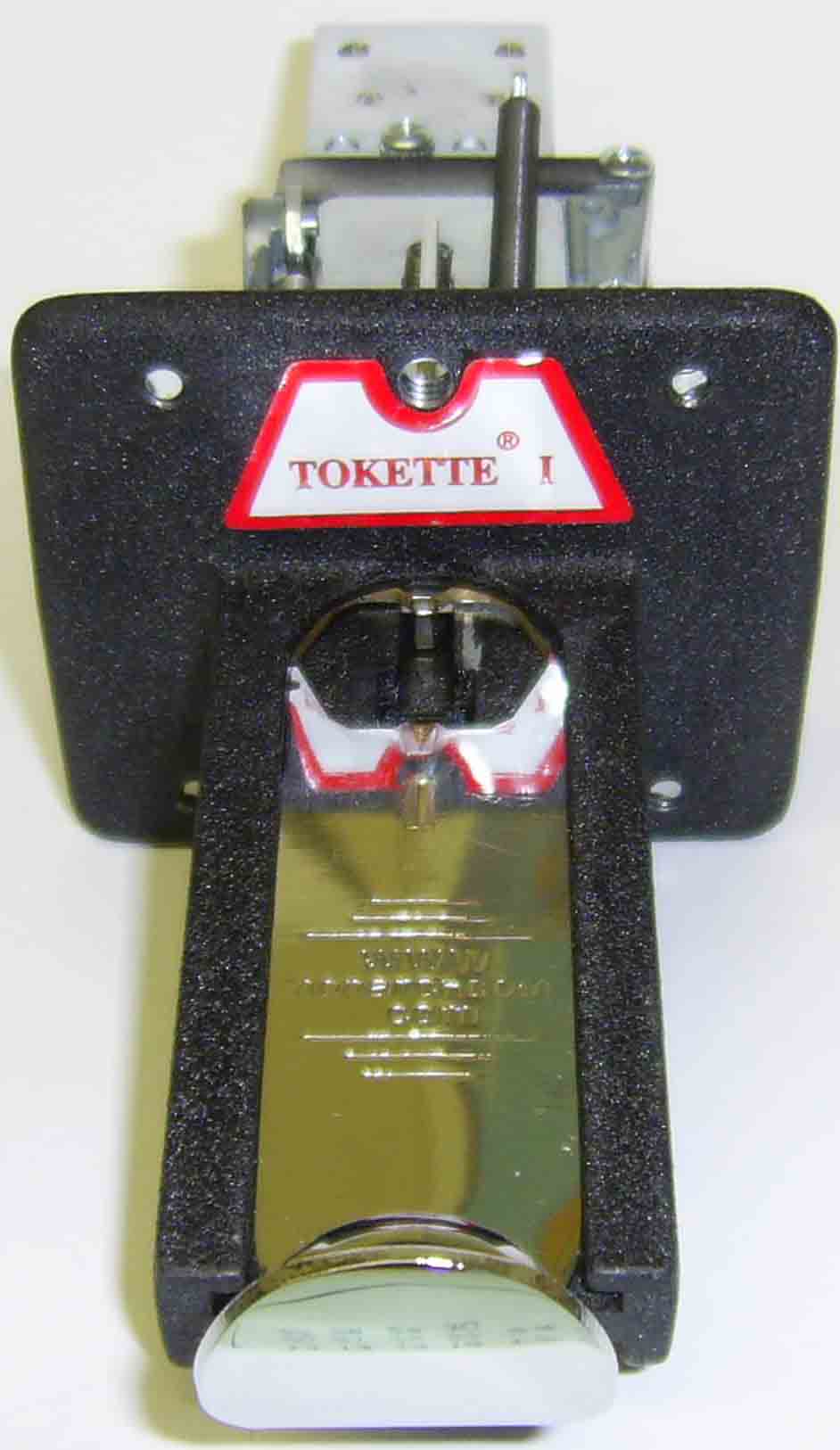

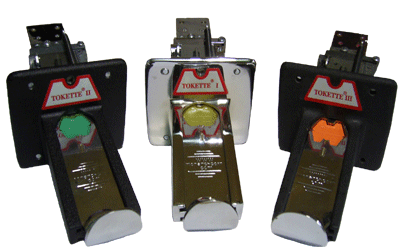

Chutes & Kits For Tokettes I, II, & III

**As the originator of this coin slide we offer this slide to many different companies. You may find them on the market in different forms but rest assured that there is only manufacture. **

Now available in traditional chrome finish. Please specify your choice when ordering.

TOKETTES are SINGLE USE, breakable plastic tokens that remove some of the risk of having cash in machines located in unsupervised, high risk

areas.
These are ideal for apartment complexes and institutional laundries.

Chutes alone are for converting existing equipment with minimal expenditures.

TOKETTS ARE AVAILABLE FOR PURCHASE UPON REQUEST!!

Complete Kits are available for putting new commercial equipment into service.
Monarch manufactures ONLY the chutes.

Chutes are available for a wide range of conventional round tokens, Double D Tokens, Teddy Bear Tokens and a Monarch's special High Security Tokens.

See your Commercial Laundry Distributor for information on these items.

Due to restriction on distribution, certain tokens are not available in all areas.

Chute Mountin Bolts and Extensions

These parts are required to put a machine into service. Please take note of the remarks with each one to determine what may be needed for your particular machine.

Mounting Bolts

15A-001 Speed Queen, General Electric, Etc.

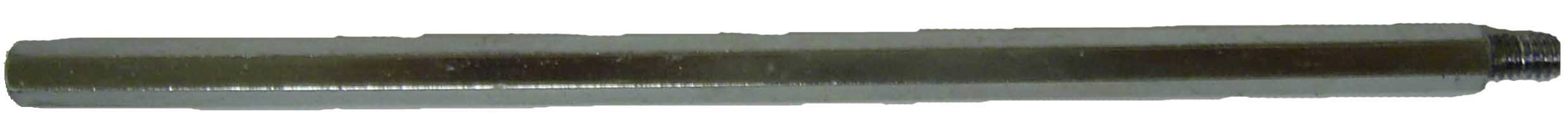

15A-002 Whirlpool & Maytag

15A-007 For Whirlpool Washers

15A-008 For Whirlpool Dryers

15A-010 Speed Queen Washer

Speed Queen's New Machines Have the Dryer Extension Packed in the Machine

15A-004 General Electric Washer

15A-003 General Electric Dryer

15A-012 Kenmore Washer

16A-KIT-OI
Universal Switch Kit
For WHIRLPOOL EMS 1000 Series Washers & Dryers
For use with any coin chutes in the electronic models.

LAUNDRY KITS

These KITS are the components needed in order for the coin operated machine to operate properly. These components do not turn a domestic machine into a coin operated machine and will not be of any use for any machine that does not come factory direct with the ability to be coin operated.

Here are the kits for the four main manufacturers.

Complete Whirlpool kit includes:

VERTICAL EIGHT COIN MECHANISM, set per your instructions, an 8" GUARDIAN COIN BOX, with a choice of five locks, a MOUNTING BOLT, and the EXTENSION for your washer or dryer. Coin Boxes are keyed 100% and can be keyed all alike, in groups per you instructions, or keyed individually. Kits Available in Chrome or Black. SERVICE DOOR LOCKS are sold separately.
NOTE: In July of 2000 Whirlpool introduced the modified meter housing. Machines manufactured prior to that month will accept a standard 6" coin box, or, with the removal of a spacer in the bottom of the coin box opening, it will accept a Guardian with a 6" tray. Machines after that date, with model numbers ending in "JQ" will accept ONLY the 8" Guardian. Current kits include the new box. So far as we know at this time, no drop mechanism is available for these machines. Only push/pull style mechanisms and card systems may be used.

15A-002

GBX-N-CH15A-00715A-008V8

NOTE: Whirlpool continues to make machines using the mechanical timer driven by a synchronous electric motor. However, there is also a series that uses a programmable solid state timer/control board. These machines use a switch kit to initiate contact and to start the machines. Monarch offers a switch kit, available with Monarch Coin Chutes and Coin Boxes, but also available separately. This allows the operator to use Monarch, ESD, Greenwald, Or lay-down tokette/token chutes. The added advantage of the Monarch Universal switch kits is that no disassembly of the coin chute is required for installation, and all wiring is kept to the rear of the meter, which isolates it more thoroughly. The same kit fits both washer and dryers in the EMS1000 Series.
http://coinop.com/

Complete Maytag kit includes:

VERTICAL EIGHT COIN MECHANISM, set per your instructions, a 8" Guardian COIN BOX, with a choice of five locks, a MOUNTING BOLT, ( the EXTENSION for your washer or dryer will be packed in the machine. These are Maytag only parts. The kit for the washer and the dryer are identical in all other respects). Coin Boxes are keyed 100% and can be keyed all alike, in groups per you instructions, or keyed individually. Kits Available in Chrome or Black. SERVICE DOOR LOCKS are sold separately.
Maytag coin boxes are now the 8" Guardian Box. Prior to the design change, Maytag coin boxes were produced by Maytag and the lock and extension, or the lock with cam were furnished separately. If your machine was produced before June 1997 then you will need to see our page on extensions for your machines. New machines will take kits as noted below.
NOTE: Older Maytag machines have coin boxes that are the same color as the machine. The GBX DOES NOT fit those machines.
As of January 2008, Maytag no longer includes the mounting bolt with the machine when shipping. It DOES include the operating extension for those machines using Push/Pull Mechanisms. Your machine will require: a V8 chute, a GBX coin box and a mounting bolt. Service door locks are sold separately.
