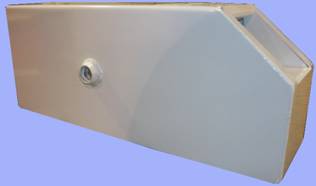

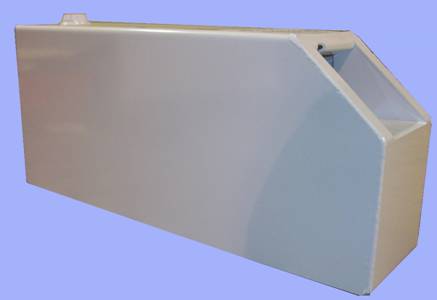

FULL BODY ARMOR
THE BEST SECURITY OPTION FOR YOUR MACHINES!
The full body armor is the best solution against vandals. With the coin box out of sight and protected, the machine gives the visual that there is no monetary benefit to damaging the machine.
While most criminals attempt to damage the coin box, many have chosen to damage the service panel in an attempt to control usage of the machine. The full body armor covers both the money box and the service door.
** Nothing is impenetrable, but this option gives your machine the maximum protection available!
** EASY INSTALLATION
** COVERS COIN BOX AND SERVICE DOOR TO STOP TAMPERING
REMOVE SERVICE DOOR AND INSERT LOCK PLATE
SLIDE GUARD OVER METER CASE
ONCE SEATED PROPERLY, INSERT LOCK AND THREAD INTO LOCK PLATE
DO NOT OVER-TIGHTEN!
REMOVE KEY AND GUARD IS SECURE
KIT INCLUDES:
FULL BODY ARMOR

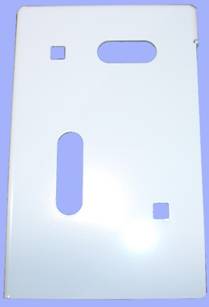

LOCK DOWN BRACKET/PLATE

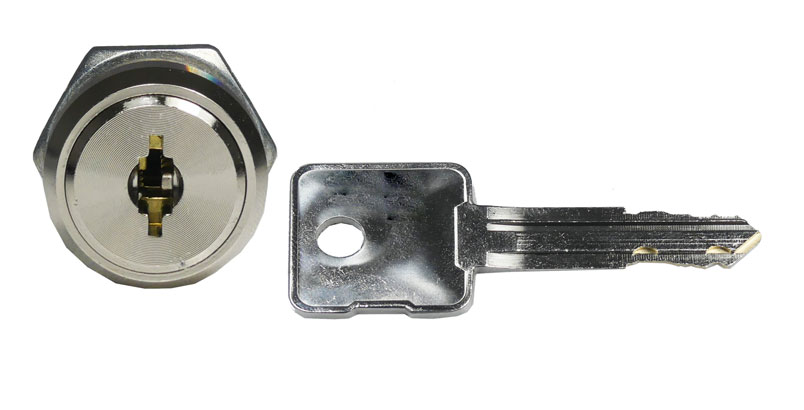

TRIGARD LOCK WITH EXTENSION KEY
Or VAN LOCK (for additional cost)
High security lock with unique flat face design that helps defy drilling and pulling attacks. Unique key provides added security as no key blanks or key cutting machines are available. Machined from solid metals and Made in the USA since 1959.
BEFORE YOU CALL TO ORDER
PLEASE LOOK BELOW FOR THE INFORMATION WE WILL NEED TO ENSURE THAT YOU RECEIVE THE CORRECT PARTS FOR YOUR MACHINE. WE CANNOT GO BY THE MODEL NUMBER.
GUARD LIST BY MACHINE BRAND
GENERAL ELECTRIC
10-FGC-GE-SM
* ACCESS PANEL DOOR ON LEFT SIDE OF METERCASE
* SLOPE FROM BACK OF METERCASE (GUARD HAS NO LIP)
* COIN BOX IS ABOUT 2 ½” TALL, 6” LONG
* USES 10-LDB-2316 LOCK DOWN BRACKET
10-FGC-SM-SL
* ACCESS PANEL DOOR ON LEFT SIDE OF METERCASE
* BACK OF METERCASE HAS 90° ANGLE (NO SLOPE) (GUARD HAS LIP)
* COIN BOX IS ABOUT 2 ½” TALL, 6” LONG
* USES 10-LDB-2316 LOCK DOWN BRACKET
10-FGC-GE-TM
* ACCESS PANEL IS ON TOP OF METERCASE
* COIN BOX IS ABOUT 3 ½” TALL, 7” LONG (SAME SIZE AS NEW WHIRLPOOL MACHINES)
* USES 10-LDB-614 LOCK DOWN BRACKET
MAYTAG
10-FGC-MTG-4716
* METERCASE IS 8” TALL
* THERE ARE 2 DIFFERENT SIZES OF LOCK DOWN BRACKET
* 10-LDB-614 – ACCESS PANEL MEASURES APPROX. 3 7/8” x 6”
* 10-LDB-618 – ACCESS PANEL MEASURES APPROX. 3 ½” x 6 1/8”
10-FGC-MTG-418
* METERCASE IS 7” TALL
* USES 10-LDB-618 LOCK DOWN BRACKET
* COMES WITH BACK PLATE
* CAN ONLY USE A ¼ TURN EXTENSION (SG-LS503)
* MUST BE SPECIAL ORDERED, NOT KEPT IN STOCK
WHIRLPOOL
10-FGC-WP-LHT
* WHEN LOOKING AT THE MACHINE, METERCASE IS ON THE LEFT SIDE OF THE MACHINE
* USES 10-LDB-614 LOCK DOWN BRACKET

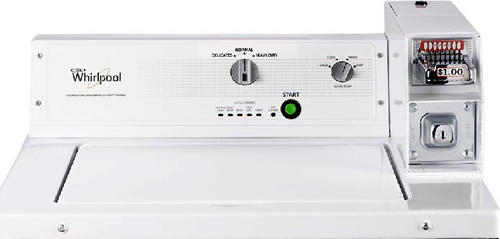

10-FGC-WP-RHT
* WHEN LOOKING AT THE MACHINE, METERCASE IS ON THE RIGHT SIDE
* USES 10-LDB-614 LOCK DOWN BRACKET
* THERE ARE 2 OPTIONS. ALSO SEE “10-FGC-MTG-4716” BELOW.
**NOTE THE SLOPE OF THE BACKSPLASH

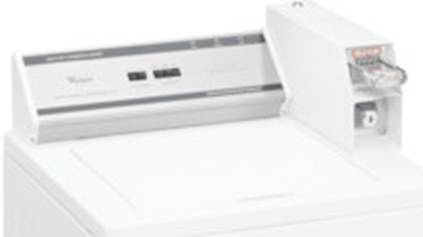

10-FGC-MTG-4716
* NEWER MACHINES (ALSO USED ON NEW MAYTAGS)
* WHEN LOOKING AT THE MACHINE, METERCASE IS ON RIGHT SIDE
* USES 10-LDB-614 LOCK DOWN BRACKET
**NOTE THE SLOPE OF THE BACKSPLASH
SPEED QUEEN
10-FGC-SQ
* COIN BOX HEIGHT MEASURES APPROX. 2 ½” TALL
* USES 10-LDB-718 LOCK DOWN BRACKET
10-FGC-SQ-T
* COIN BOX HEIGHT MEASURES APPROX. 3 ½” TALL
* USES 10-LDB-718 LOCK DOWN BRACKET

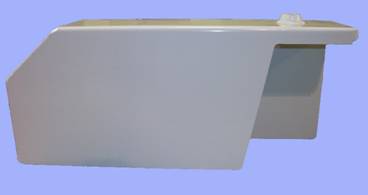

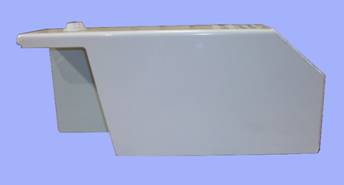

KENMORE
* WHEN FACING THE MACHINE, IS THE METER CASE ON THE LEFT OR RIGHT?
* MEASURE FROM THE MIDDLE OF THE SERVICE DOOR LOCK TO THE BACK OF THE METER CASE
* EITHER 3 1/8” OR 2” WE ONLY HAVE THE 3 1/8” IN STOCK
PART# 10-FGC-KNM-LHT
PART# 10-FGC-KNM-RHT
PART# 10-FGC-KNM-RHT
BOTH USE LOCK DOWN BRACKET: 10-LDB-614
