METERS & TIMERS

Please read all of the information on this page carefully. Meters are complete units and contain the timer, coin mechanism and coin box inside. If you request just a timer you will not have a meter case or coin mechanism.

We have 3 basic styles of meters, the HM6, HM5 and our push button non-coin operated version. Each one of these units has the ability to take any timer that we offer.

Below  is our complete range of timers and meters  that will suit every need for a timed vend.  We have done many different custom applications involving gas, water and energy conservation with these meters in various different markets.

For questions regarding our meters or timers do not hesitate to call us!!

Basic Components for the Coin or Token Operation of Time Metered Electrical Items Such as Pumps, Sports Court Lighting, Heaters or Valves for Showers or Other Dispensing.

The meters are made with security in mind. They feature a heavy gauge welded steel construction, with a Black Powder Coat Finish. Coin boxes lock on all four sides and are enclosed in a vault that separates coins from the timer, & coin mechanism area.

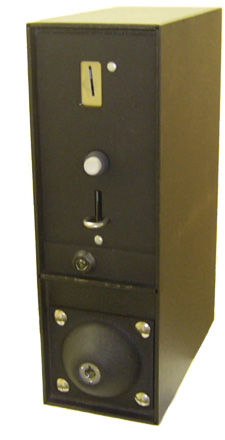

The HM6 utilizes A Drop/Roll Down Style mechanism, which allows for a wide variety of tokens, or coins, or our specialty chutes such as the token/quarter combination chute. It uses the HRD, the HRV or the TL2 Series Timer. Keep in mind that using the HRD limits acceptance to only one token or coin, while the HRV will count up to 7 coins to start and accumulates with the insertion of added coins, and the TL2 will accept up to 8 coins to start and also will accumulate. The meter is serviced from the front, allowing it to be recessed into a wall and still allow complete service. The coin box locks on all four sides and holds approximately 700 coins/tokens.

Click here for HM5 & HM6 meters and components for coin/token operated timer controls.

Our HM6 meters are available with the timers listed below.

HRD Series HRV Series TL2 Series

For Installation instrucitons click the linke below

http://www.monarchcoin.com/images/stories/showers-support-install.pdf

Basic Components for the Coin or Token Operation of Time Metered Electrical Items Such as Pumps, Sports Court Lighting, Heaters or Valves for Showers or Other Dispensing.

The meters are made with security in mind. They feature a heavy gauge welded steel construction, with a Black Powder Coat Finish. Coin boxes lock on all four sides and are enclosed in a vault that separates coins from the timer, & coin mechanism area.

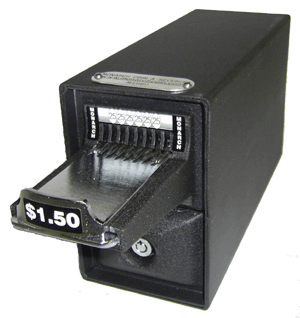

The HM5 utilizes the Push/Pull Style mechanism, which allows for a wide variety of specialty tokens or Vertical Eight's to accept multiple coins, foreign coins, or our specialty chutes such as the token/quarter combination chute. It uses the HRD or the HRD Timer. The service door is accessed from the face opposite the coin mechanism and coin box. The coin box holds approximately 400 coins/tokens.

Click here for HM5 & HM6 meters and components for coin/token operated timer controls.

For Installation instrucitons click the linke below

http://www.monarchcoin.com/images/stories/showers-support-install.pdf

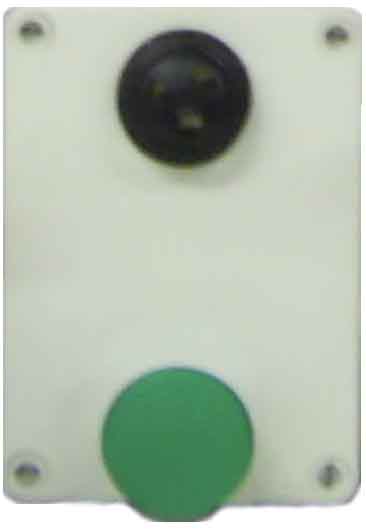

Push button meter

When you don't want to charge for your resources but want to limit usage and costly waste!

For  users who wish to only regulate time, we also offer a push button model on all of our timers.

Our NEMA rate push button enclosure is a great way to ad control to your lighting, showers or any other resource that would need to be controlled with out using coins or tokens.  This unit was designed to accomidate facilities in remote locations or in areas were people choose to not ad an additional profit center.

Many of our parks and recreation areas only want to conserve their resources and now we have an durable solution to meet those needs.

Inside our push button meter you will have a choice of timer options along with an audible alarm feature that will notify the user when the unit is about to shut off.  These units are great for many different applications or in areas were coin usage or token dispensing may be difficult.

 This meter has an optional locking system on the side of the meter that allows for controlled usage of the push button operation.  This helps to regulate the times when users are able to utilize the resources as well as to help control unwanted abuse and misuse.

Made of a Solid NEMA rated water proof plastic based material, each unit is water tight and easily mounted in any location.  As with each of our meters this unit has the ability to accept any of our timers as mentioned below.

For more information or details feel free to contact us.

Solid State Timers

Available with a wide range of features, voltages and time ranges.
For use in meters for the control of electrical devices based on a timed vend, such as:

HRD Series HRV Series TL2 Series

HRD Series Single Shot Timers

Features:
Simple single shot operation
Solid state digital time
Inexpensive
Durable
Water resistant potted construction
Compact (2" x 3" x 1-5/8" over relay)
One impulse to start
Wide selection of time ranges
Wide selection of voltages

Simple One-Shot Timer
OPERATION: Input voltage must be applied to terminals 1 and 3 and maintained prior to and during operation. Breaking power while operating will reset timer to zero when power is restored. The HRD unit will accept one closure from the initiate switch and activate the load for the set time. On completion of the time setting the load is de-energized. The Initiation Switch MUST break before a new cycle may be initiated. Timing is adjustable by means of the small knob with a repeatability of .5%.
APPLICATIONS: For control of pumps, showers, lighting, small motors, and other electrical devices where a coin operated timed function is desired.

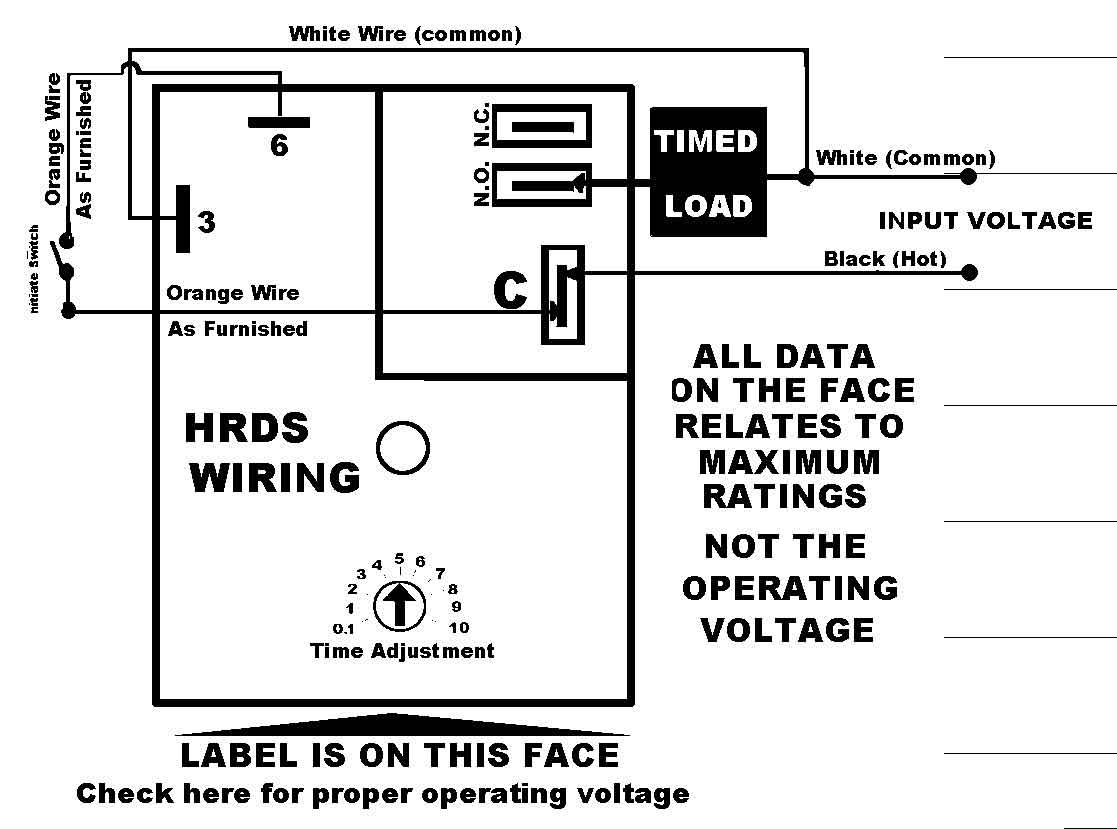

Simple wiring and easy installation: two input leads into the timer, two leads to the load, and two leads to the initiate switch, make for simple trouble free service. Electro-mechanical relay allows loads up to 20 amp, with little or no heat dissipation problems.
AVAILABLE IN:
20-HRDS123 12VDC .1 to 10 minutes
20-HRDS223 24VAC .1 to 10 minutes
20-HRDS224 24VAC 1-100 minutes
20-HRDS423 110VAC .1 to 10 minutes
20-HRDS424 110VAC 1-100 minutes
Timers operate equally well at 50 or 60 hz, using their own internal oscillators, but they are voltage sensitive. Built of all solid state circuitry (except for the relay), deeply potted to protect the components from humidity and dirt, the rugged unit is appropriate for a wide range of applications, indoors or out.

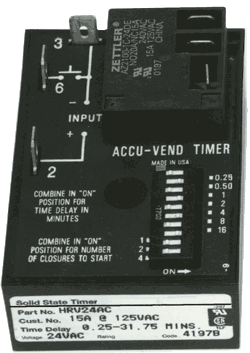

HRV Series Timers

Features:
Accumulating / totalizing timer
Accumulates up to 256 cycles
Up to seven coins to start
Available in several voltages
Isolated Relay, 20 Amp DPST
30 Amp SPST available
For 60 or 50 cycle current
Precise digital time settings
Small, compact, potted electronics
Accumulating / Totalizing Timer
OPERATION: Input voltage must be applied and maintained prior to, and during operation. The HRV unit will count each closure of the initiate switch. When the total number of closures equals the total number to start (up to 7), which was set on the lower three DIP switches, the load is energized and the vend time is started. While running, at every initiate switch closure, the HRV unit adds one time interval per switch closure, as set on the upper seven DIP switches. Total time is the time interval set on the upper switches, times the number of closures set to start on the lower switches.
For example, a total time of 15 minutes is desired for a minimum of two closures. The "coins to start" switch group will have the "2" switch set to the right, and the time interval switches for "4", "2", "1" & ".50" will be set to the right. All other switches remain to the left. The first closure will cause no immediate action. The second closure will start the vend, which will run for the 15 minutes (2 x 7.50 - the aggregate time of the four switches). If added closures are made during the run time, 7.5 minutes is added to the remaining time. Up to 260 added cycles may be accumulated in this manner Total range for the timers is from 15 seconds (.25 minutes) to 31 minutes, 45 seconds (31.75 minutes) per closure.
APPLICATIONS: For the timed control of TV / radio, car wash vacuums, pumps at marinas, campsites, air compressors, water stations, showers, tennis / basketball court lights.
AVAILABLE IN:
Voltage Part Number
12 VDC 20-HRV14AC
24 VAC* 20-HRV24AC
24 VDC 20-HRV34AC
120 VAC* 20-HRV44AC
220 VAC 20-HRV64AC
* Kept in stock, others may require special ordered, 2-3 weeks
Timers operate equally well at 60 or 50 hz using their own internal oscillator. All solid state circuitry, deeply potted, with electro-mechanical relay for reliability.
Standard units will accept loads to 20 amp. Special order units for 30 amp available with com/no poles only on the relay.

Accumulating Timer With Audible Alarm

Features
Single Input
Two time ranges
1 minute intervals to 31 minutes - 5 minute intervals to 160 minutes - per impulse
Accumulation of time
Each coin will add to the total based on time settings
Counts coins, up to 8 to start
Field adjustable
Output for audible or illuminating warning
One amp steady state, 10 amp inrush - SPST output - Field adjustable - From 1 to 4 minute on short range timer - From 2 to 8 minute on long range timer
Available in 24 VAC or 110 VAC
Other voltages available on special order
Uses solid state switch with 1 amp capacity
One amp steady state, 10 amp inrush
On-board varistor to protect from current spikes
Accurate, potted, durable solid state circuitry
Accumulating Totalizing Timer
Single Input with Alarm
OPERATION: Input voltage must be maintained between N and L1 prior to and during operation. Terminal C1 is to the switch on the coin mechanism. Time settings are made by the appropriate combination of the first 5 DIP switches on the timer. The duration of the alarm is set on switches 6 & 7. Switches 8, 9 & 10 set the number of impulses to start.
Output voltage for the alarm matches operating voltage and primary for the timer. Maximum load on either terminal is 1 amp steady, 10 amp inrush. Loads exceeding these limits should be operated through an appropriate contactor. Monarch also has audible alarms appropriate for use with this timer, or you may choose your own light, horn or buzzer.
AVAILABLE IN:
P/N TL2-24S-2564A-5 110VAC - 1 minute increment
P/N TL2-24S-2564A-7 110VAC - 5 minute increment
P/N TL2-23S-2564A-5 24VAC - 1 minute increment
P/N TL2-23S-2564A-7 24VAC - 5 minute increment

HM5 & HM6 Meters and Components

Types of AQ Systems 1 2 3 4 5 6 7 HOUSINGS AVAILABLE HM5 Housing - with coin box & service door (Specify, left mount, right mount, or no holes) X X X X       HM6 Housing - with Gaurdian coin box and service door (Specify, left mount, right mount, or no holes)         X X X COIN/TOKEN MECHANISMS AVAILABLE Model 444 (specify which token or coin to be used.) X X           Vertical Eight (Advise Setting) Available quarters only, or for round tokens, or combo accepting 25¢ & .984 token or one special token over riding quarter settings (the last version is a premium option)     X X       Drop Coin/Token (specify token or coin) Also available to accept either 25¢ or .984 token FOR HM6 ONLY         X X X TIMERS AVAILABLE HRD Single Shot Timer, 24 VAC for Aqua-Misers, available in 12 VDC, 110 VAC & 220 VAC for other Coin Operated Applications. X   X   X     HRV Accumulating timer, 24 VAC for Aqua-Misers, available in 12VDC, 110 VAC & 220 VAC for other Coin Operated Applications.   X   X   X   TL2 Timer w/Alarm 24VAC for Aqua-Misers, available in 110 VAC for other Coin Applications, 1 minute interval or 5 minute interval.             X ADDED OPTIONS Optional Alarm Buzzer (for TL2 Timers only - 24 VAC or 110 VAC)             X

Packaged AquaMiser Systems are described below. Complete systems will include the transformer, valves and fittings, or you may order meter only for replacing older meters of for other applications:

System 1 HM5 Meter, with Model 444 mechanism (specify which coin or token) And Single Shot HRD Timer.

System 2 HM5 Meter, with Model 444 mechanism (specify which coin or token) And Accumulating HRV Timer.

System 3 HM5 Meter, with Verticle 8 mechanism (specify initial setting) And Single Shot HRD Timer.

System 4 HM5 Meter, with Verticle 8 mechanism (specify initial setting) And Accumulating HRV Timer.

System 5 HM6 Meter, with KWM 100 Drop mechanism (specify which coin or token) And Single Shot HRD Timer.

System 6 HM6 Meter, with KWM 100 Drop mechanism (specify which coin or token) And HRV Accumulating, Totalizing Timer.

System 7 HM6 Meter, with KWM 100 Drop mechanism (specify which coin or token) And TL2 Accumulating, Totalizing timer, with alarm output. (Factory installed buzzer with TL2 is a cost added option.)

System 8  NEMA Push button enclosure with HRD Single Shot Timer.  Warning buzzer and Key Lock out optional

System 9  NEMA Push button enclosure with HRV Accumulative Timer.  Warning buzzer and Key Lock out optional

System 10 NEMA Push button enclosure with HRV Accumulative Timer.  Warning buzzer and Key Lock out optional

Aquamiser Shower Systems

Based on the HM Series Meter, the addition of a valve assembly and a transformer creates a solution to these problems. .

Is getting adequate water a problem?

Complaints about the lack of hot water?

Is heating water more expensive?

Is your waste system being strained?

Outsiders using your facilities for free?

UNITS MAY BE COIN/TOKEN OPERATED OR PUSH BUTTON

NOT JUST A PAY SHOWER!

REASONS TO CONSIDER TOKEN USE

CLICK FOR PDF BROCHURE

You may not wish to charge your patrons for use of the showers. But with water conservation becoming a very important issue, and with energy costs for heating water rising rapidly, you will save money, and control your operating costs by using the Aqua-Miser Shower Controls to control WHO uses your facility, and how long they are they are in there. You also increase customer satisfaction, as the one getting a late shower doesnt have to take a cold one because all the hot water is gone. And there would be no more issues with folks leaving without turning the water off!

Tokens can be a hassle. There has to be someway to put them into the hands of the customers. But in some applications it's well worth it. Tokens allow you to restrict WHO is using the facilities and how often they can use it. It also offers security, as there is no cash in the coin boxes to tempt vandals in what is an unsupervised area.

SYSTEM 1 uses the HRD Timer, a single shot timer with a Model 444 lay-down style chute to accept single coin or token. Time range is from .1 to 10 minutes, and is set by means of a knob on the timer.

SYSTEM 2 uses the same single coin lay-down chute, but it has an HRV Timer , an accumulating and totalizing timer. Totalizing allows a setting that counts the number of times the chute is to be inserted before it initiates the time cycle. Once started, additional coins may be inserted to add to the total time. Time range per chute closure is 15 seconds, to 31.75 minutes. All settings are made by means of DIP switches on the timer face.

SYSTEM 3 uses the HRD Timer, as in System I, but the coin mechanism is a Vertical Eight that can accept from one to 8 coins in a single stroke. The coin chute may be removed from the housing and the price changed in the field with out disassembly. This mechanism is interchangeable with the same mechanisms used in coin operated Laundry Equipment. It may be produced to accept quarters, tokens or foreign coins.

SYSTEM 4 uses the HRV Timer with the Vertical Eight Coin mechanism. This allows for very high priced vends for unique applications.

Note: The systems below use the HM6 Meter housing. The advantage over the HM5 is that the case can be serviced from the front. This allows the unit to be mounted into a wall. The drop mechanism also eliminates the protrusion that a push/pull style mechanism presents.

SYSTEM 5 uses the the HRD timer with KWM drop mechanism. Keep in mind that the HRD is single shot timer and the timer will start with the insertion of just one coin or token and it must complete its cycle before another may be inserted.

SYSTEM 6 uses the HRV Totalizing/accumulating timer. This will allow the insertion of up to 7 coins to start and added coins accumulate additional time.

SYSTEM 7 is primary for use on recreational light, but may be used in conjunction with the valve and transformer for shower use. This uses the TL2 timer and the KWM drop mechanism.

NOTE: The systems listed below all use our NEMA rated push button enclosure.  They are non-coin operated and contain the timer inside the unit. Our push button enclosures do not have room inside the unit to house the transformer, this must be housed in another location external from the meter itself>

SYSTEM 8 NEMA Push button enclosure with HRD Single Shot Timer.  Warning buzzer and Key Lock out optional

SYSTEM 9 NEMA Push button enclosure with HRV Accumulative Timer.  Warning buzzer and Key Lock out optional

SYSTEM 10 NEMA Push button enclosure with HRV Accumulative Timer.  Warning buzzer and Key Lock out optional

Complete AquaMiser Systems include a transformer for taking line voltage down to a safe 24 Volt operating current. The transformer furnished is a plate mounted transformer, to be mounted on a proper electrical box, and safely away from wetting. All AquaMisers are 24 Volt Systems for the protection of the customer and lower liability problems.

We now offer an inline valve as well as the right angle valve. In some applications one may be more convenient than the other.

Aquamiser / Shower Meters

There is quite a bit of hype about various "certifications" on shower equipment.

First, in most applications, UL/CSA listing are REQUIRED only on systems rated to operate at 36 Volts or more. Listings for lesser voltages is voluntary.

All of the components in Monarchs meters are UL/CSA listed.

Any company offering such components can offer no more than that, as the quality of the installation will determine the true safety of the units.

Secondly, There is no central clearing or certifying agency for ADA compliance. According to offices within the Federal and State Justice department who handle challenges under ADA, the greatest concern is with how the installation is made. For example, if the units are installed in areas inaccessible to those in wheelchairs, then there is no ADA compliance. No Manufacturer can claim to be fully ADA compliant unless the Manufacturer is also accepting responsibility for the installer.

Monarch has produced meters for use in showers and other coin metered applications since 1903.

There are units in service today that were originally sold with electro-mechanical timers in the 60's, long before many thought that conserving water and minimizing waste in showers was of any interest at all. The recent addition of the HM6 and the TL2 timers, as well as the up coming introduction of an in-wall unit demonstrate Monarch’s commitment to serving this need. Monarch units are in use in many countries as well as North American locations.

LIGHTING

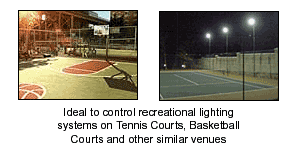

 Coin or Token Operated Controls For Recreational Lighting

Our systems are ideal to control recreational lighting on Tennis Courts, Basketball Courts and other similar venues.

MONARCH SYSTEM 7

HM6 HOUSING
« WELDED STEEL
« POWDER COATED INSIDE AND OUT
« LARGE CAPACITY COIN BOX
« COIN MECHANISM CAN BE MADE TO ACCEPT COIN OR TOKEN
« ALL COMPONENTS ACCESSIBLE FROM THE FRONT.
« MORE ABOUT THE HM6

WE ALSO OFFER A PUSH BUTTON METER THAT UTILIZES THE SAME TIMER CONTROLS AND FEATURES, WITHOUT THE COIN OR TOKEN USE.

TL2 Timer with Buzzer/Alarm

"Out"put controls the load, normally a coil in the contactor controlling the lights. "Wn" controls the alarm buzzer.
Available with two Timer intervals: One minute, with a maximum of 32 minutes per coin. Alarm can be adjusted to active 30 seconds, 60 seconds, 90 seconds or 120 seconds before shut off.
Five minute interval with a maximum of 160 Minutes per coin.
Alarm can be adjusted to activate 2, 4, 6 or 8 minutes before shut off.
Use our buzzer or your own 24VAC Alarm or Warning Light.
The combination of the HM6 Meter Housing, the TL2 Timer and an Alarm Buzzer creates a system ideal for use to control lighting systems on Tennis Courts, Basketball Courts and other similar venues.
The timer totalizes the number of coins to start, up to eight. It will accumulate additional cycles with the addition of more coins, and has an adjustable output to the buzzer which will notify the user when total time is near to finishing. At that time, the patrons may add more coins, or allow to shut off.
This avoids much of the aggravation created by lights with long warm up cycles suddenly going dark in the middle of a game.
The buzzer is mounted in the enclosure. It has a volume adjustment, from loud (80db at 3 ft) to a soft hum.
MORE ABOUT THE TL2

IMPORTANT NOTE! TO LIMIT LIABILITY PROBLEMS, TO SATISFY MANY INSURANCE REQUIREMENTS, AND TO PROVIDE A SAFE SYSTEM FOR THE USE OF THE GENERAL PUBLIC, WE RECOMMEND THAT THE CONTACTOR HAVE A 24VAC COIL AND THAT A TRANSFORMER BE INSTALLED IN THE CONTACTOR’S ENCLOSURE, PROVIDING 24VAC TO THE TIMER AND BUZZER. THIS ELIMINATES SHOCK HAZARDS TO ANY USER SHOULD A UNIT BE DAMAGED BY ACCIDENT OR BY VANDALISM.
